ASME B16.9 ASTM A815 UNS S32750 SMLS CONCENTRIC REDUCER 4 INCH X 3 INCH SCH160S

Product Categories
Zhengzhou Huitong Pipeline Equipment Co.,Ltd.
Contact Now

ASME B16.9 ASTM A815 UNS S32750 SMLS CONCENTRIC REDUCER 4 INCH X 3 INCH SCH160S

  • 1
  • 2

Brand Name : HT

Model Number : ASME B16.9 ASTM A815 UNS S32750 SMLS CONCENTRIC REDUCER 4 INCH X 3 INCH SCH160S

Certification : ISO TUV BV SGS,etc.

Place of Origin : China

MOQ : 1pc

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10000000000pcs/month

Delivery Time : 5~50days

Packaging Details : plywood case,pallet,woven bag,carton,etc. as per your requirements.

Material : ASTM A403 S31254

Product Name : ASME B16.9 ASTM A815 UNS S32750 SMLS CONCENTRIC REDUCER 4 INCH X 3 INCH SCH160S

Standard : ASTM A815

Size : Seamless : 1/2″ – 10″, Welded : 1/2″ – 48″

Type : Seamless / Welded / Fabricated

Application : oil gas chemical

Contact Now

ASME B16.9 ASTM A815 UNS S32750 SMLS CONCENTRIC REDUCER 4 INCH X 3 INCH SCH160S

1. ASTM A815 Standard Specification for Wrought Ferritic, Ferritic/Austenitic, and Martensitic Stainless Steel Piping Fittings

ASTM ;A815/ASME ;SA815 standard Specification for Wrought Ferritic, Ferritic/Austenitic, and Martensitic Stainless Steel Piping Fittings
Material ;Grade WP27 CR27 UNSS44627 WP33 CR33
CR429 UNS ;S42900 WP430 CR430 UNS ;S43000
UNS ;S43036 WP446 ; CR446 UNS ;S44600 WPS31803
WPS32101 CRS32101 UNS ;S32101 WPS32202 CRS32202
CRS32750 UNS ;S32750 WPS32950 CRS32950 UNS ;S32950
UNS ;S32760 WPS39274 CRS39724 UNS ;S32974 WPS32550
WPS32205 CRS32205 UNS ;S32205 WP410 CR410
UNS ;S41008 WPS41500 CRS41500 UNS ;S41500 CRS31803
UNS ;N44626 WP429 WP430TI CR430TI UNS ;S31803
UNS ;S32202 WPS32750 WPS32760 CRS32760 CRS32550
UNS ;S32550 WPS41008 CRS41008 ; ;
Product ;Form
ASME ;B16.9 Long ;Radius ;Elbows,Long ;Radius ;Reducing ;Elbows,Long ;Radius ;Returns,Short ;Radius ;Elbows,Short ;Radius ;180-deg ;Rerurns,3D ;elbows,Straight ;Tees,Straight ;Crosses,Reducing ;Outlet ;Tees,Reducing ;Outlet ;Crosses,Lap ;Joint ;Stub ;Ends,Caps,Reducers
ASME ;B16.28 Short ;Radius ;Elbows,Short ;Radius ;180-deg ;Returns
MSS ;SP43 Long ;Radius ;Elbows,Straight ;and ;Reducing-on-the-Outlet ;Tees,Lap ;Joint ;Stub ;ends,caps,long ;radius ;180 ;Degree ;returns,concentric ;reducers,eccentric ;reducers
MSS ;SP75 Long ;Radius ;Elbows,3R ;elbows,straight ;tees,reducing ;outlet ;tees,caps,reducers

2. Key Specifications / Features

Type: 32750 SMLS Concentric Reducer
Size: 4″ – 3″ (DN100 – DN80)
WT: SCH160S
Material: 2507 (UNS S32750)
Standard: ASME B16.9

3. Chemical Composition % of (UNS32750/F53) 2507

Grade Chemistry (Typical Values) Mechanicals
Specification Cr Ni Mo Cu N W Si Mn P
max		 S
max		 C
max		 Fe UTS
N/mm²
(min)		 0.20%
Proof
(min)		 Elong
% (min)		 Hardness
HB (max)		 PREN
2507(F53) 25.0 7.0 3.8 0.75 0.25 0.28 0.80 1.20 0.035 0.020 0.030 Bal 750 500-550 25 270 41

ASME B16.9 ASTM A815 UNS S32750 SMLS CONCENTRIC REDUCER 4 INCH X 3 INCH SCH160S

NPS O.D.
D		 O.D.
D1		 Len
H
4*1½ 114.3 48.3 102
4*2 114.3 60.3 102
4*2½ 114.3 73 102
4*3 114.3 88.9 102
4*3½ 114.3 101.6 102
5*2 141.3 60.3 127
5*2½ 141.3 73 127
5*3 141.3 88.9 127

ASME B16.9 ASTM A815 UNS S32750 SMLS CONCENTRIC REDUCER 4 INCH X 3 INCH SCH160S


China ASME B16.9 ASTM A815 UNS S32750 SMLS CONCENTRIC REDUCER 4 INCH X 3 INCH SCH160S wholesale

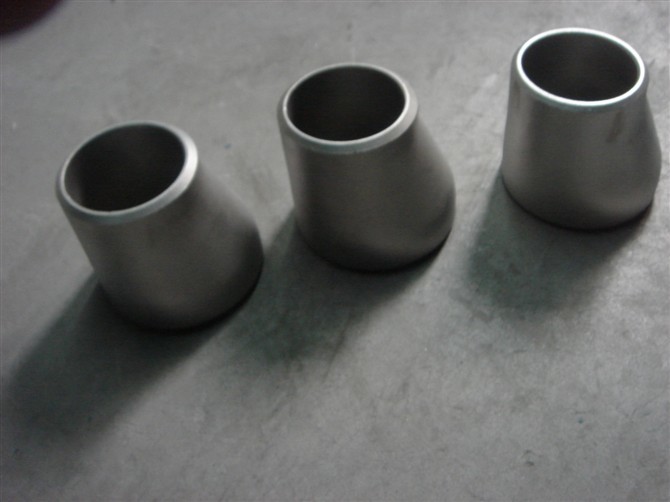

ASME B16.9 ASTM A815 UNS S32750 SMLS CONCENTRIC REDUCER 4 INCH X 3 INCH SCH160S Images
